Description

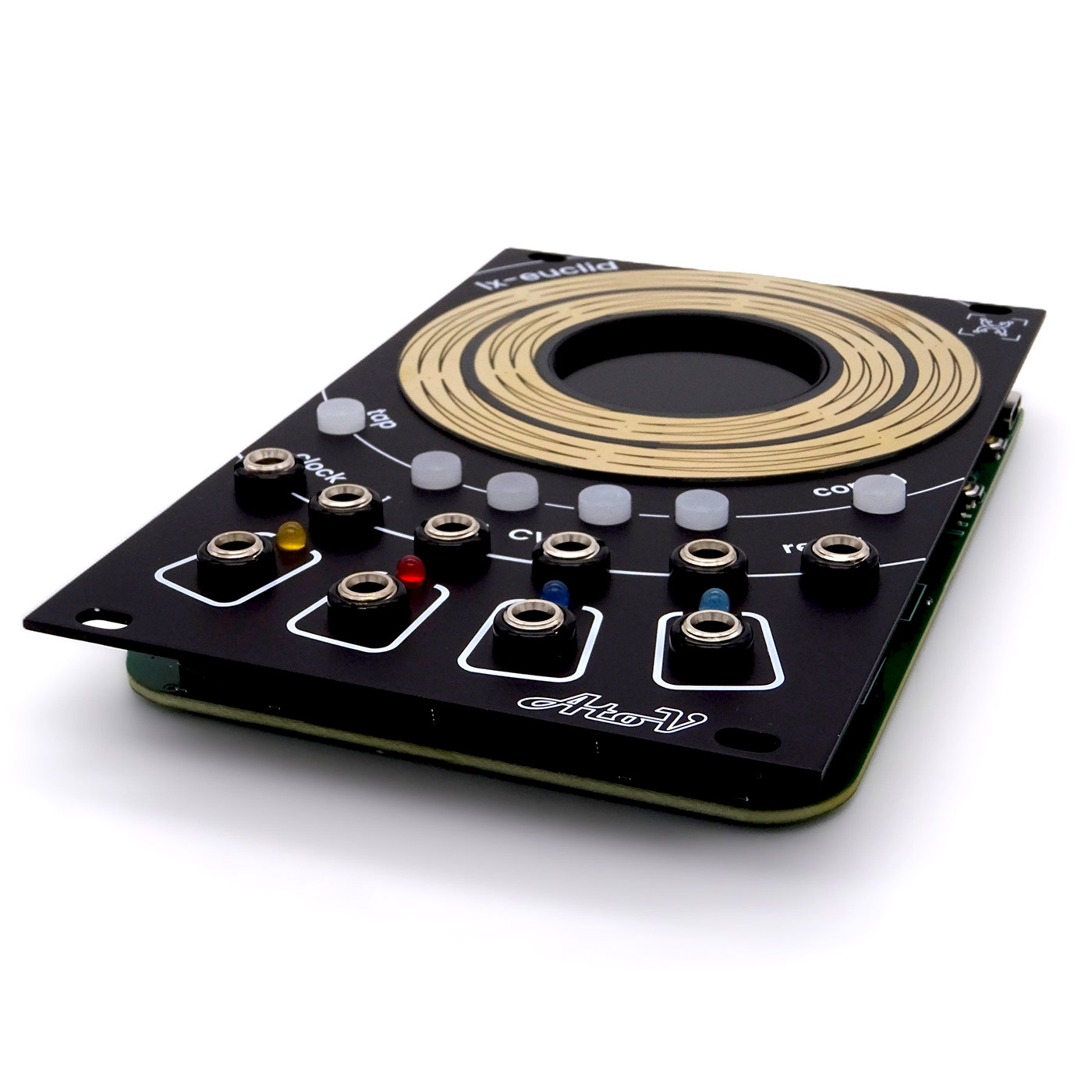

The LX-Euclid is a 4-channel trigger sequencer with a standout feature: two touch-sensitive rings that redefine hands-on control. These rings, paired with a full colour circular display, offer an unparalleled, intuitive interface designed for fast, real time performance. The touch rings make it incredibly easy to interact with your sequences, allowing you to apply mutes, fills and resets on the fly. The immediate tactile response puts creative control directly at your fingertips, making it perfect for both live improvisation and studio work.

In addition to it’s touch-sensitive rings, the lx-euclid boasts 4 assignable CV inputs, probability settings and 8 x save slots, offering endless possibilities for pattern creation and variation. The module also introduces new twists on traditional Euclidean rhythms, with Exponential, Inverse Exponential and Mirrored Exponential algorithms for even more flexibility and evolving beats. Whether you’re looking to unlock new creative possibilities or elevate your live set, the lx-euclid’s touch rings bring a whole new level of expression to your modular rig.

LX-Euclid – Build Document | User Manual

Features:

• Four trigger sequencers
• Two touch capacitive rings
• Performance macro (Mute, Fill, Reset, etc)
• 4 fully assignable CV inputs (+/-5V input range)
• 4 rhythm generative algorithms
  • Euclidean Rhythm
  • Exponential Euclidean
  • Inverted Exponential Euclidean
  • Symmetric Exponential Euclidean
• 8 save slots

Specs:

• Width: 16hp
• Depth: 12mm with included power cable
• Power consumption: +12V: 120mA, -12V: 7mA
