Description

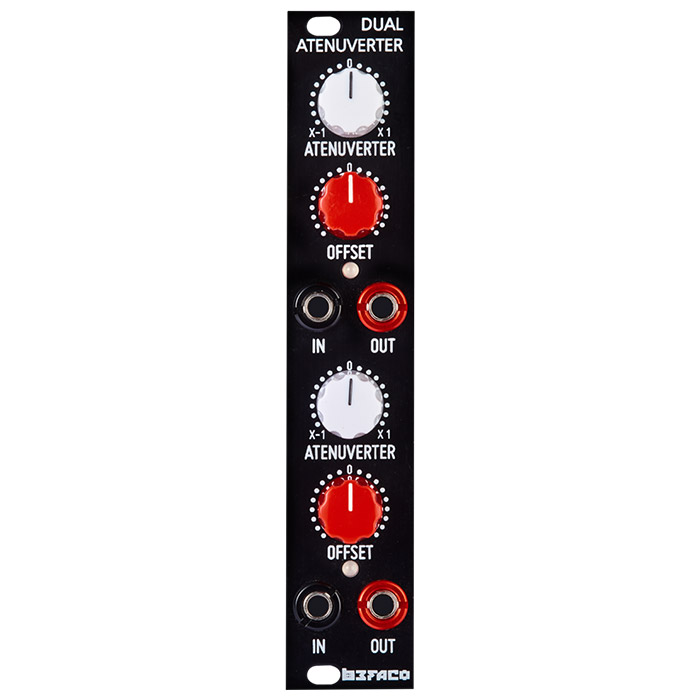

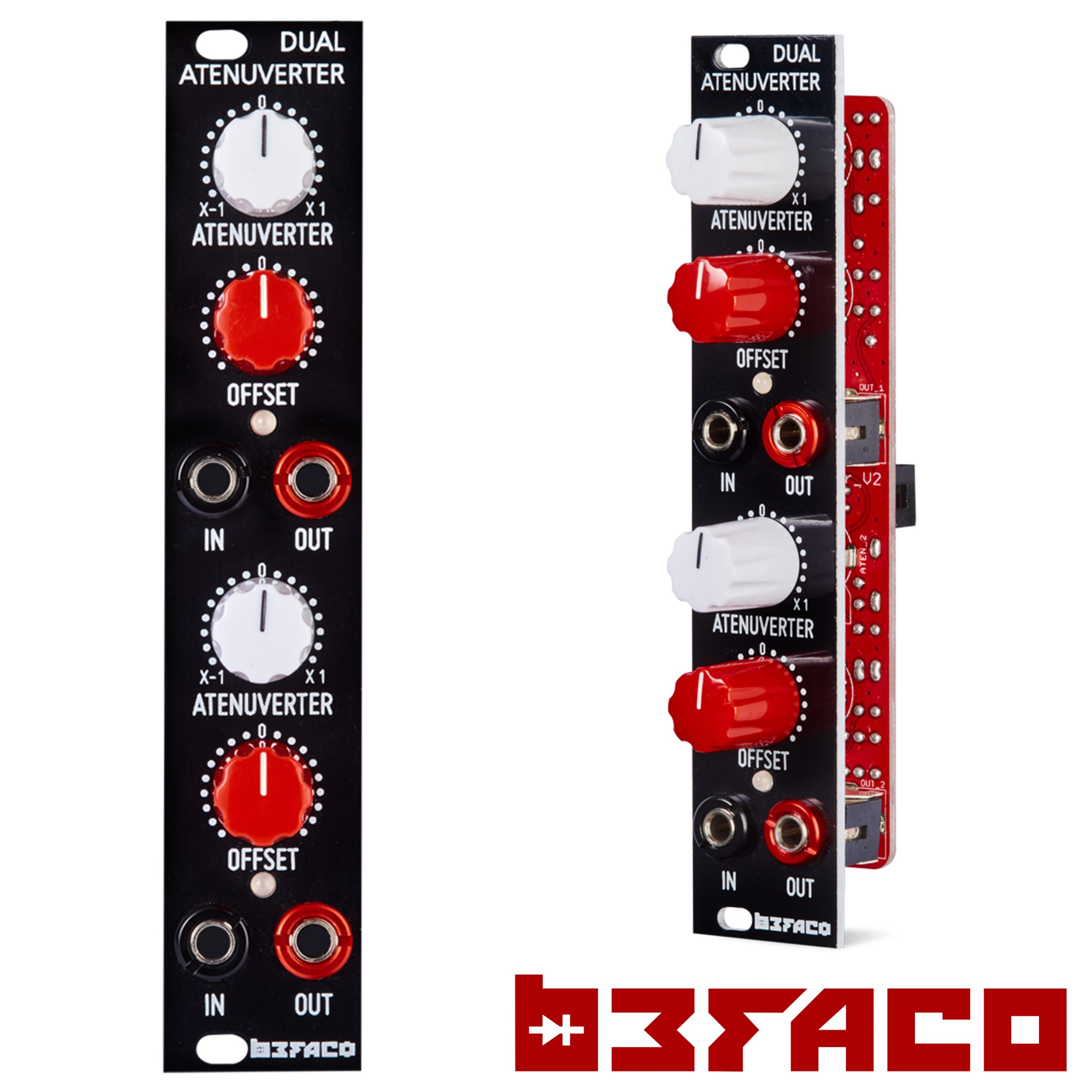

CV/Audio utility able to attenuate, invert and apply offset to an input signal.

With the main pot (attenuverter) at right it will multiply the signal by 1 and at the left will do by -1.

Offset control will add +/- 10V DC to the output. Quite useful as DC adder when no input is present.

Bicolor LEDS will turn on in red when the output signal is positive and becomes green when the signal is negative, this make the unit a good as CV monitor

Build Documents – https://befaco.org/docs/Dual_Attenuverter

Specs:

• Eurorack compatible
• 5HP / 24 mm depth
• 21mA +12V / 18mA -12V Power consumption
• Kit includes Befaco Bananuts and Bananut Wrench Tool
