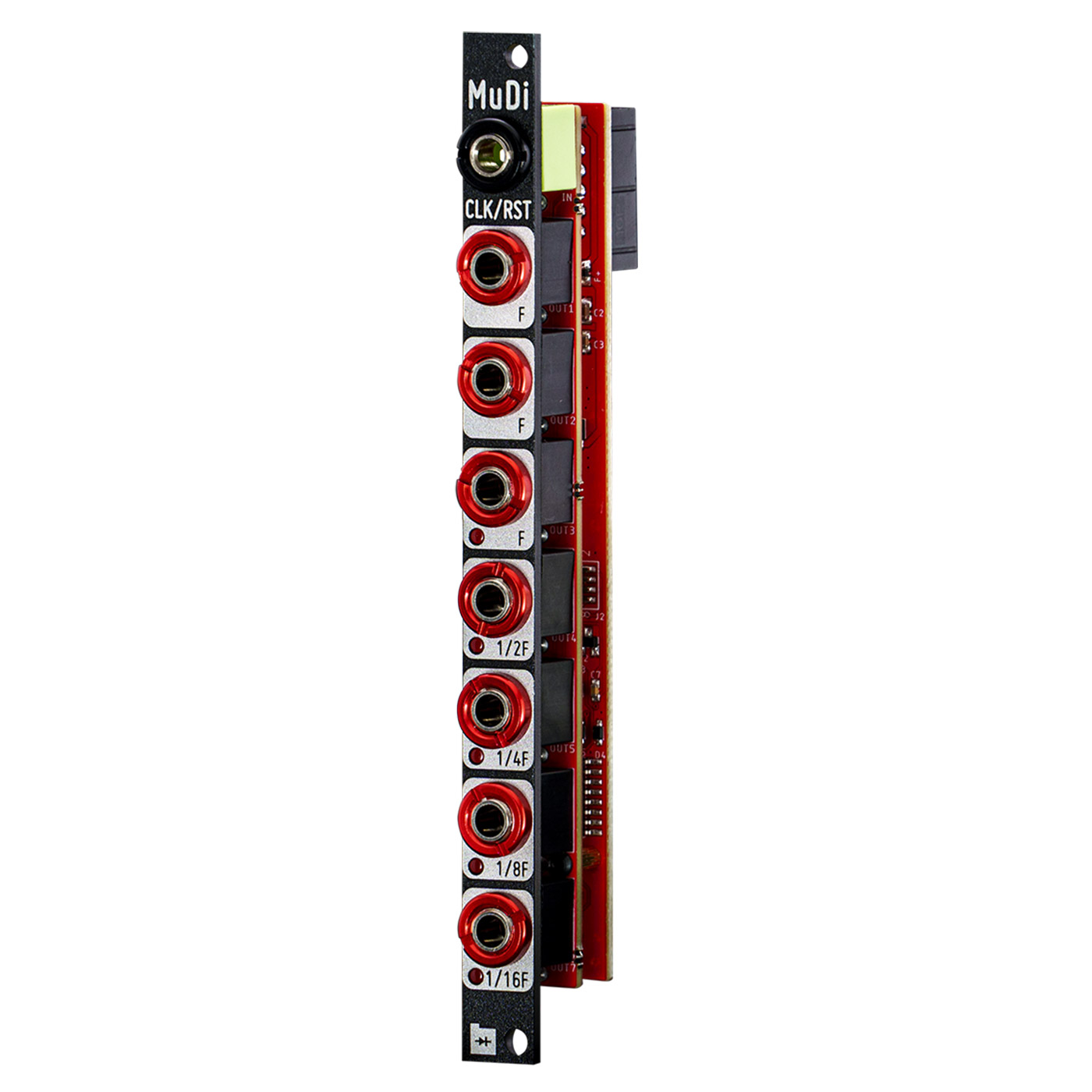

Description
Distribute your clocks throughout your system using minimal rack space.
The first three outputs maintain the same frequency as the input, while outputs 4 to 7 provide time divisions of 1/2, 1/4, 1/8, and 1/16.
The active topology allows you to patch clocks on the fly, avoiding the tempo interruptions that can occur with passive multiples.
To reduce the footprint, the input is a TRS jack, with the clock signal on the tip and the reset on the ring. For standard clock only operation, use a regular mono cable, or use the provided splitter to access the reset function.
Features:
- IN accepts pulses greater than 2V.
- Scale all clocks to 10V.
- Accepts audio rate square waves for suboctave generation.
- 7 Outs: 3 conditioned copys + 4 quadratic divisions.
- TRS to dual mono splitter cable included
Specs:
- Width: 2 HP
- Depth: 30mm including Power connector.
- Power Consumption: +12V: 60mA, -12: 0mA,
- Designed, kits prepared and modules assembled in Barcelona.
