Description

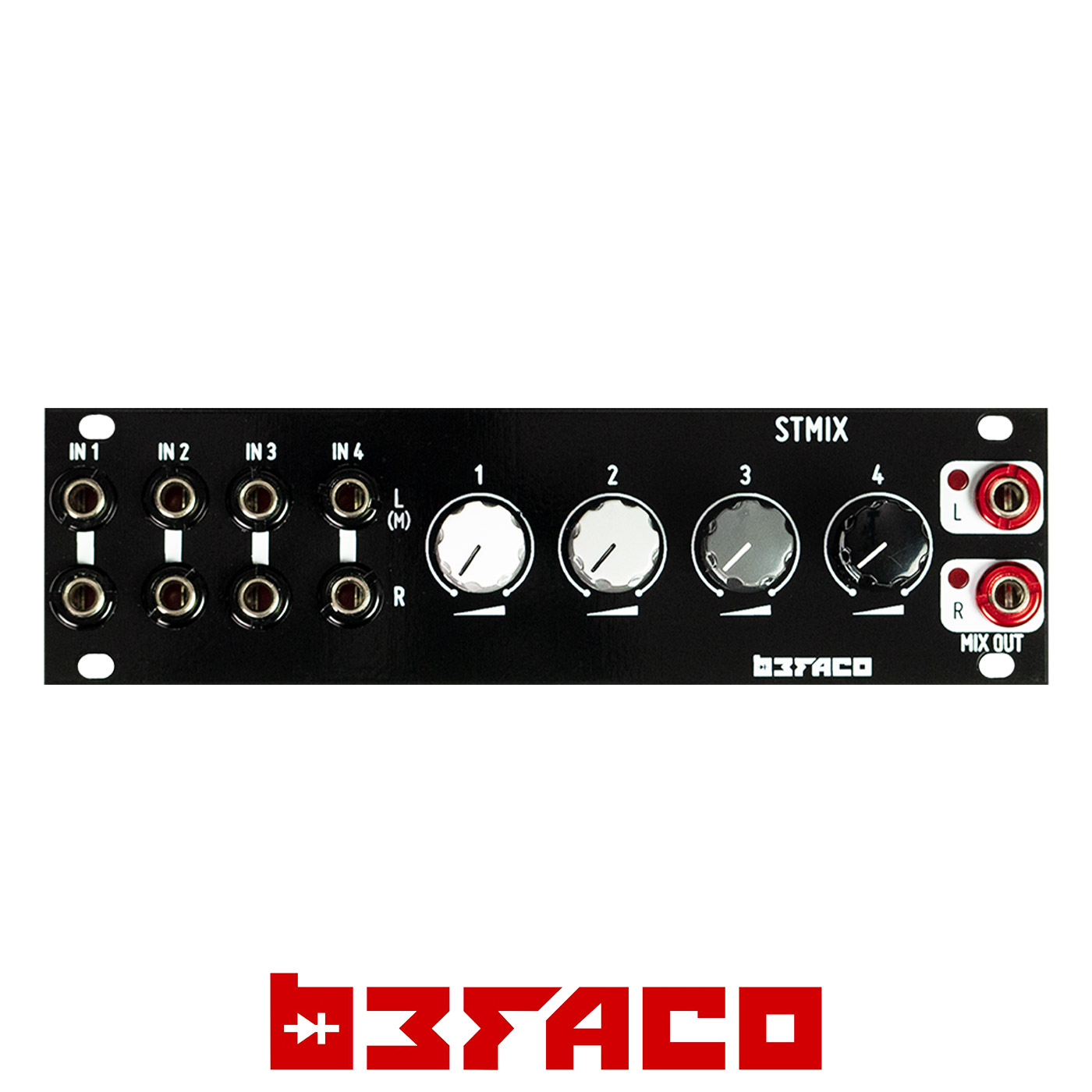

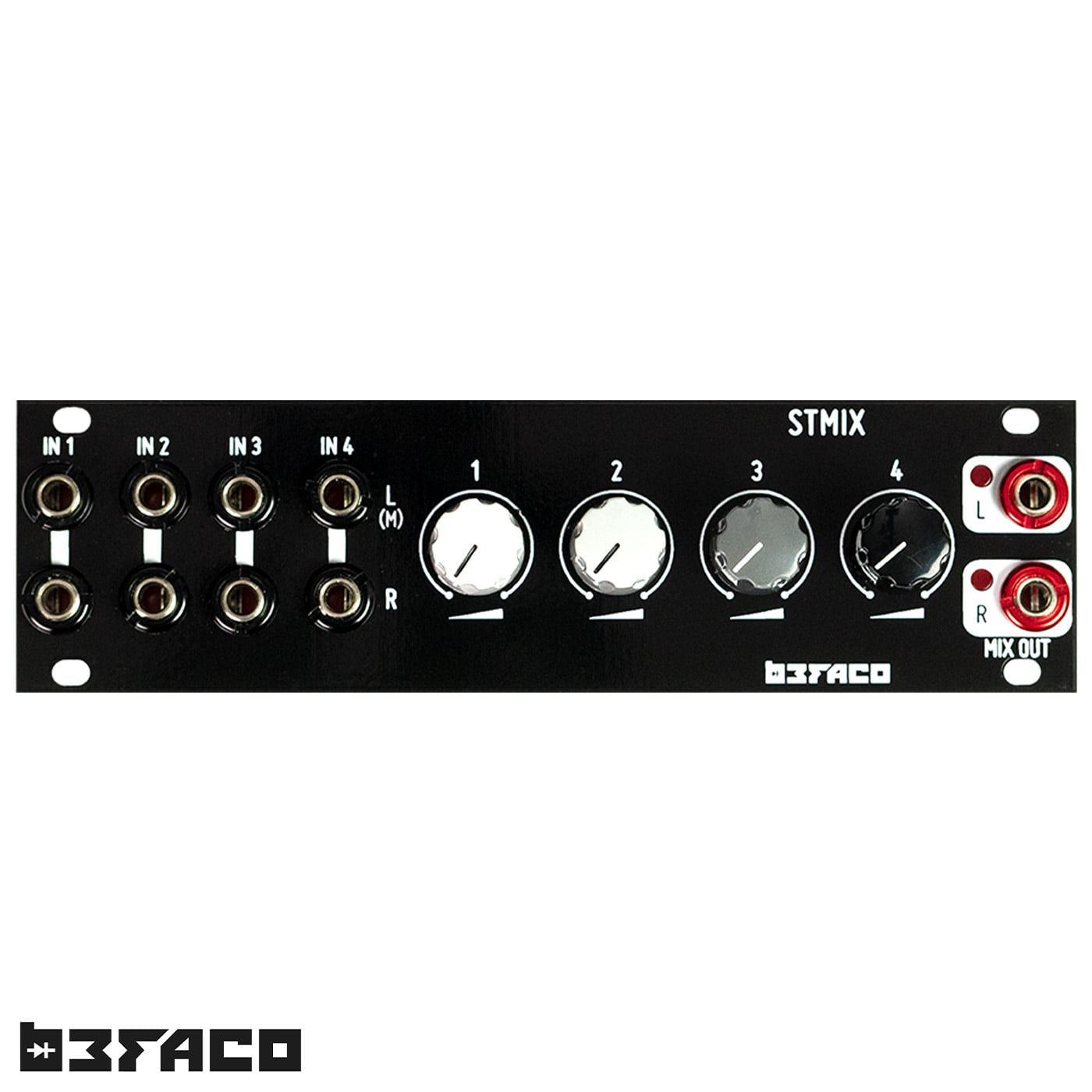

STMix is a four-channel stereo mixer in 28HP and 1U format. It can work independently or as an expansion of our Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

Features:

• Four channels stereo inputs with volume control.
• AC Coupled inputs to improve audio performance.
• Output clipping LED indicators.
• Connector at the back to interface with the Hexmix module.
• 1U Intellijel format.

Specs:

• Width: 28 HP
• Depth: 20mm (including power connector)
• Current needs: +12V: 30mA, -12V: 30mA
• Aluminium, heat-treated front panel

1U STMIX – Build Document | User Manual
