Description

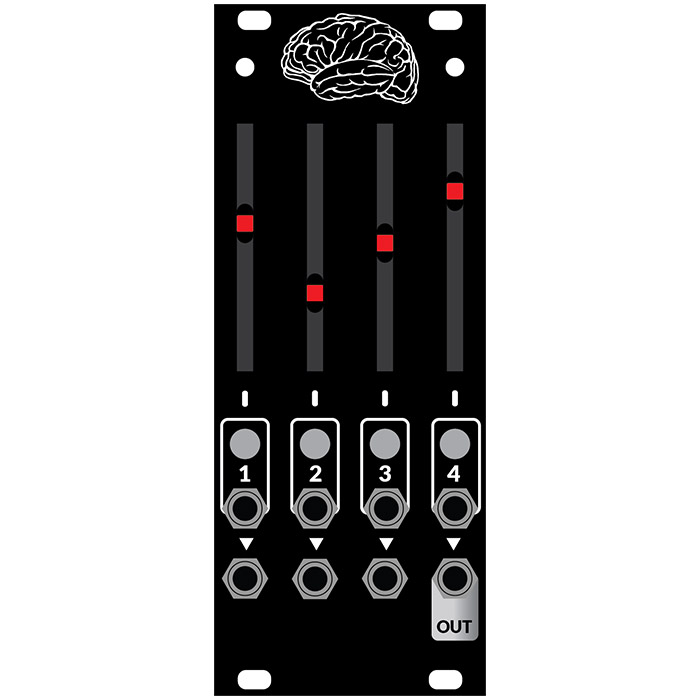

The Nerve Center is an easy to build and adaptable 10HP Eurorack mixer able to meet any of your mixing needs. It can be a 4:1 mono mixer, two 2:1 stereo mixers, individual attenuators, or any combination of these. It will happily mix audio or CV signals, or both!

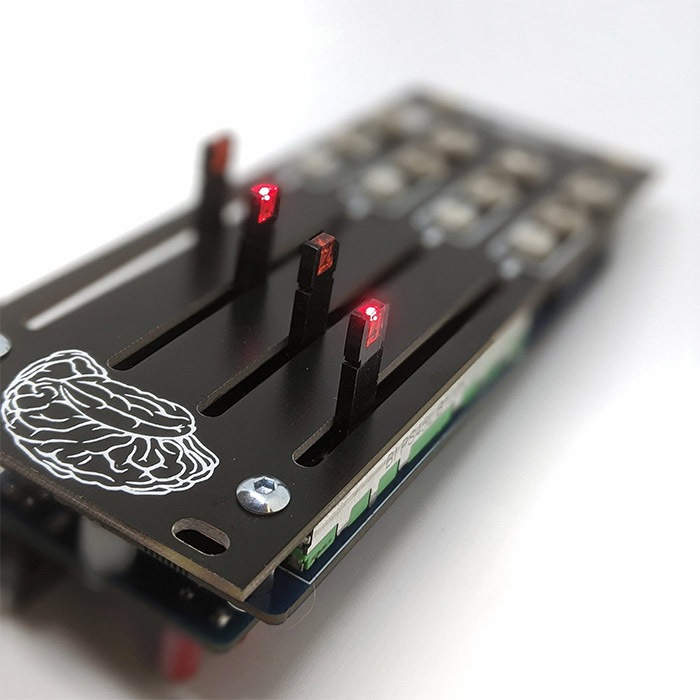

Each output is normalled to each successive input, and its output level is set by the faders. This mixer provides 1:1 gain, but gain can be adjusted by replacing a few resistors. Mute switches cut the input from the output, and the red fader LEDs indicate which channels are muted or not. Nerve Center is DC coupled.

Build Document – Assembly Guide
