Description

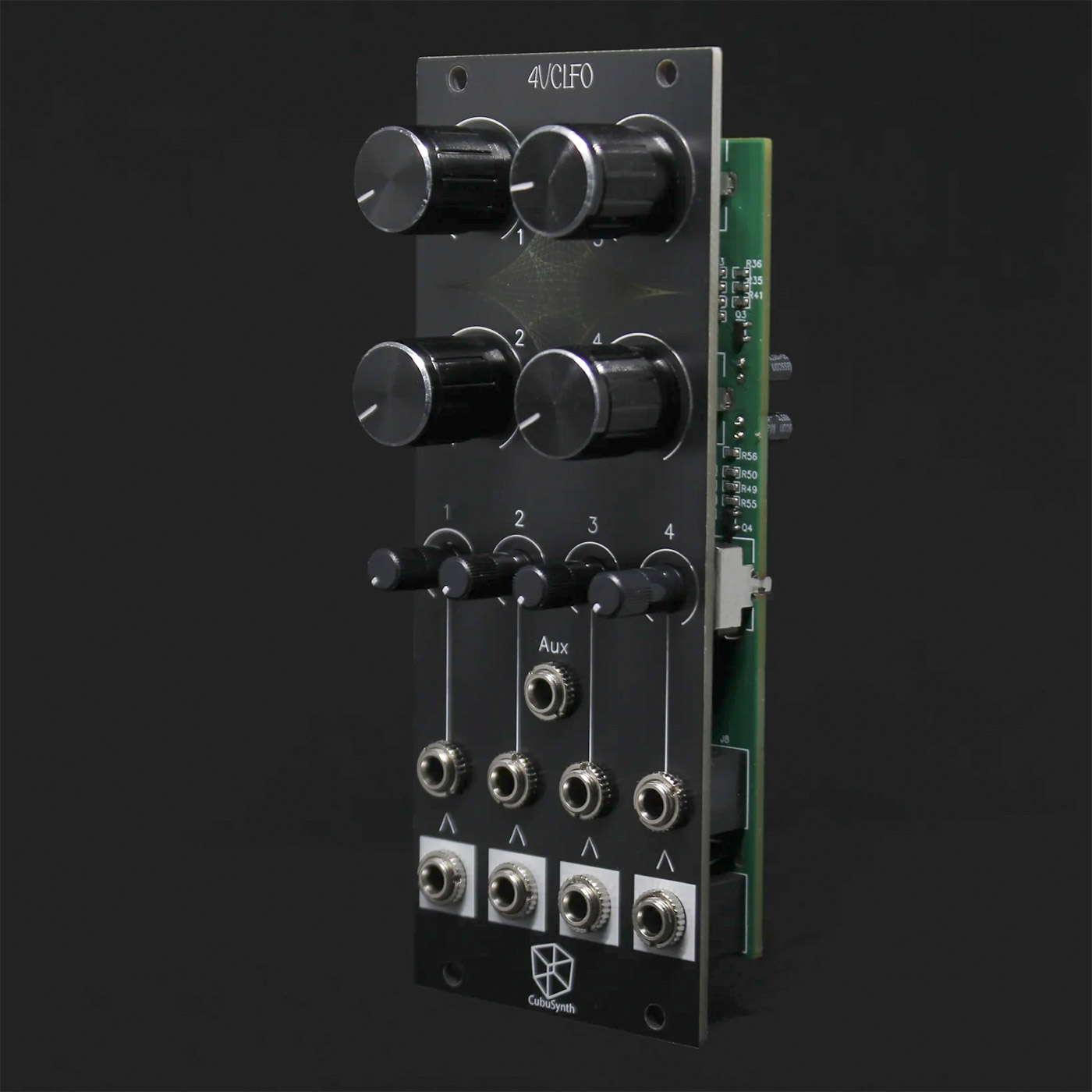

The VCLFO is a quad LFO module in 10hp. The module features four triangle outputs and a dedicated knob for the frequency of each LFO as well as four CV inputs with attenuators. The Aux input is normalised to the four CV inputs, which makes it possible to modulate all LFOs at the same time from one signal . Plugging a cable into an individual CV input breaks its connection from the aux input, allowing for  flexible modulation in busy patches.

An LED display at the centre of the knobs helps to visualise the relationship of the four LFOs. It’s also possible to customise the overall LFO range to your liking by changing capacitor values on the back of the module.

VCLFO – Build Document (all SMD is already pre-soldered)

Specs:

• Width: 10HP
• Depth: 20mm
• Power: +12V = 12 mA , -12V = 12 mA
