Description
The EN129 is based on the pioneering work by Douglas Kraul and Bernie Hutchins. You can read the original Electronotes article from 1981 that the design is based upon here.

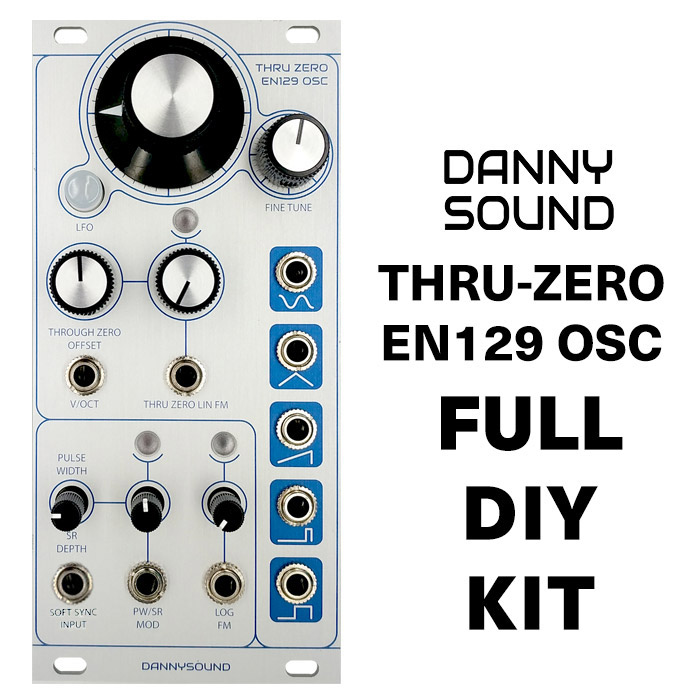

The EN129 Thru Zero Oscillator is an all analog triangle-core VCO specialising in frequency modulation. Analog thru-zero FM modulation produces a wide array of timbres particularly useful for bell like or percussive sounds. Frequency modulation can be precisely dialled in thanks to a dedicated input attenuator and v/oct offset control. Logarithmic FM is also available via it’s own dedicated input with attenuator and both FM inputs have an LED to indicate incoming voltages. Simultaneous analog wave outputs include: Sine, Triangle, Sawtooth, Square and Pulse wave with Pulse Width Modulation. The PWM control goes to zero at either end of it’s range, which is very useful for creating rhythmic sounds with voltage control. Furthermore the PWM control doubles up as waveshape modulation for the Sawtooth wave – gradually altering the waveform until it shifts half a cycle. The EN129 features Coarse and Fine frequency controls as well as an LFO mode. LFO range is accessed via an LED pushbutton that also acts as the LFO speed indicator – the button will light up when the waveform moves through its positive cycle.
EN129 – Build Document | Schematic-Main Board | Schematic-Pot Board
Features:
- NEW for 2020 – Soft Sync Input
- Thru Zero linear FM
- Logarithmic FM
- Zero to zero pulse width modulation
- Sawtooth wave shape modulation
- Simultaneous outputs for: Sine, Triangle, Saw, Pulse & Square
- Coarse & Fine controls with LFO mode
- Genuine Rogan USA knobs (hex keys included)
- All Through-hole build – no SMD components!
- Width: 12HP
- Depth: 40mm
- Power: +12V = 51mA, -12V = 47mA
We now only stock full kits of Dannysound designs – PCB/Panel sets are not available.
