Description
A selection of Eurorack DIY Essentials – we’ll be adding new products to this page gradually over time!
IC Sockets
Good quality DIL sockets, 7.62mm (0.3in) pitch that accepts round pin headers. The pins have been machine turned and the main body has been manufactured from polybutylene terephthalate (PBT) with glass fibre. Available in 8 pin, 14 pin and 16 pin socket sizes:
-
- 8 pin turned pin sockets – pack of x60
- 14 pin turned pin sockets – pack of x34
- 16 pin turned pin sockets – pack of x30
Specs:
-
- Leg Style : Solder
- Lead Pitch : 2.54mm
- Row Pitch : 7.62mm
- Contact Material : Copper Alloy
- UL Approved.
Standoffs
11mm long, M3 female to female Hex Standoffs made from Steel with Zinc plating. Full datasheet here
Sold in packs of ten
Eurorack Power Cables
-
- 10 pin to 16 pin – 25cm long
- 16 pin to 16 pin – 30cm long
These cables are correctly keyed in relation to the red (-12v) ribbon conductor so are suitable for use with both shrouded and un-shrouded headers.
Always power your Eurorack modules wisely! RTFM!
1×3 Ribbon Cable 7.5cm
2.54 pitch 3 way Ribbon cable F-F, 4UCON: 21114
Male + Female Header Bag (60 Pins Total)
INCLUDES
6 x 10 pin male single row header (2.54mm pitch)
3 x 20 pin female single row header (2.54mm pitch)
Break these down or join them together in any configuration you need.
Manufactured by TruConnect
10uF Low-Profile Electrolytic Capacitor (35v)
Panasonic Aluminium Electrolytic Capacitors – Radial Leaded
These are compact and low profile unipolar electrolytic caps – the same type that you will find in many kits packed by Thonk.
Diameter:5 mm
Length:5 mm
Lead Spacing:2.5 mm
Full datasheet here

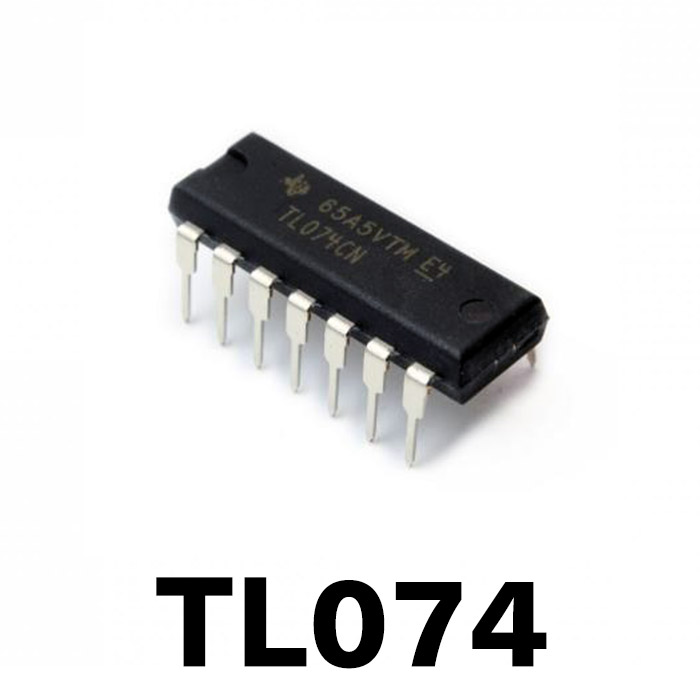

Texas Instruments – TL072 (DIP-8) & TL074 (DIP-14)
Operational Amplifiers IC chips
Through-hole package of these popular op-amp chips made by Texas Instruments.
Full datasheets here
10 Pin Eurorack Power headers – Shrouded and Unshrouded
2×5 double row male pin headers (2.54mm pitch)
Either shrouded or bare/unshrouded
Sold in packs of ten
16 Pin Eurorack Power headers – Shrouded
2×8 double row male pin headers (2.54mm pitch)
Shrouded – Sold in packs of ten
Eurorack Case Screws (x100)
Bags of 100 x Rack Screws. A cost effective alternative to using knurlies!
These Pan Head Pozidriv Machine Screws are available in M3 Black, M3 Silver and M2.5 Silver.
Length: 6mm
