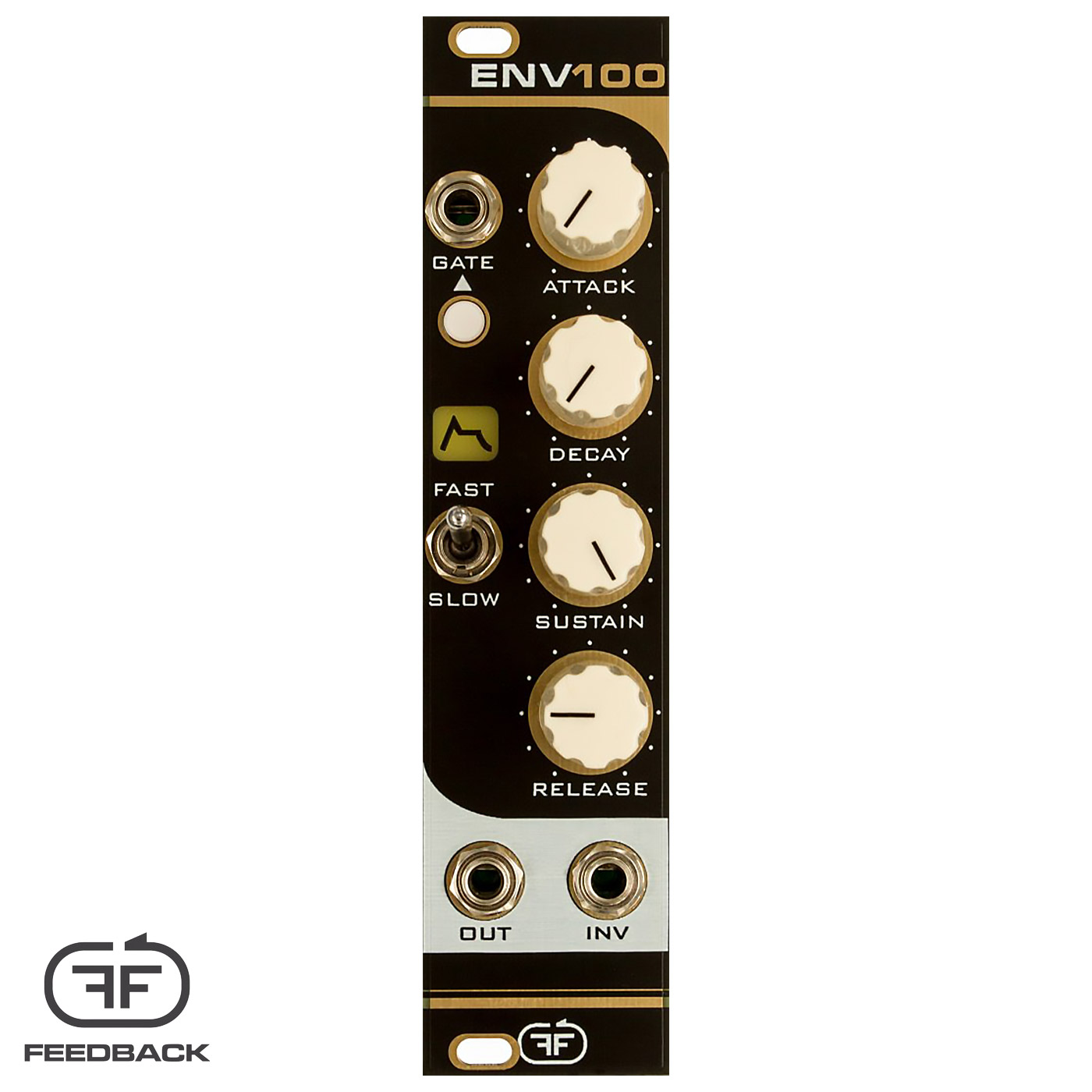

Feedback – ENV-100 – Full DIY Kit

£36.00 (Excl. VAT)

Snappy Envelope Generator based on classic Roland system 100m

This is a simple SMD build, good for SMD beginners who have mastered through hole kits first.

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: Kit_Feedback_ENV-100 Categories: , , Brand: HP Size: 6 HP

Description

This is probably the fastest envelope generator in Modularland.
Why? Because it is based on the fastest one. The classic Japanese modular from the seventies that everyone loves!

Tech specs:

– Panel width 6HP
– 35mm depth behind the panel, including the power connector
– 4 control pots : Attack, Decay, Sustain, Release
– 1 gate switch : triggers ADSR cycle
– 1 time switch : switches between fast and slow envelope times
– One normal and one inverting output jack 8V peak
– Standard 10 pin euro power +12V/-12V
– Power consumption +12V 20mA , -12V 15mA

FAST TIME
Attack Time 4ms-2s
Decay Time 8ms-4s
Sustain Level 0-8V
Release Time 8ms-4s

SLOW TIME
Attack Time 6ms-20s
Decay Time 15ms-40s
Sustain Level 0-8V
Release Time 15ms-40s

This kit contains all the parts needed to build a complete ENV-100 module.

▼Download – Build Files

▼Download – Build Photos

▼Download – User Manual

For more details and forum visit :

ENV-100 Module – Modwiggler

Additional information

Weight 0.109 kg
