Description

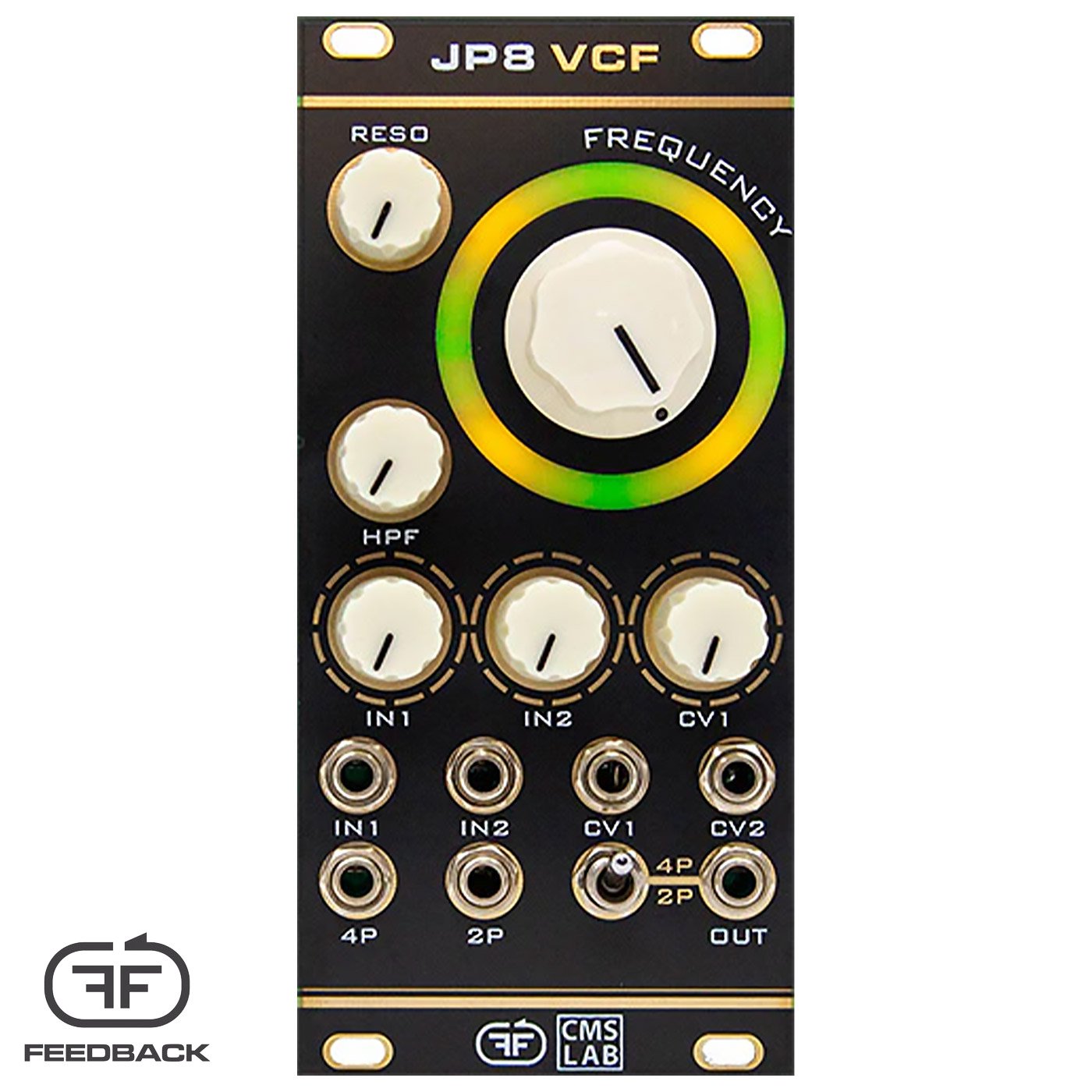

The one and only JP8 VCF, featuring 2-pole (12 dB/oct) or 4-pole (24 dB/oct) plus High Pass Filter.
Some highlights of this module are:
- High Pass Filter made with AS662A
- WIMA polypropylene capacitors
- selected 2SK30ATM-GR N-channel J-Fet transistor
- AS3109D and AS662A, ALFA RPAR modern identical to the original IC.
- two mixed signal inputs
- independent outputs for 2-pole, 4-pole and an alternate output with selection of modes from a switch
- the CVs are 0-5Vpp, 10Vpp CVs can be attenuated with the CV1 pot.
Tech specs:
- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA
This module is a collaboration between Feedback Modules and CMS-LAB.
