Description

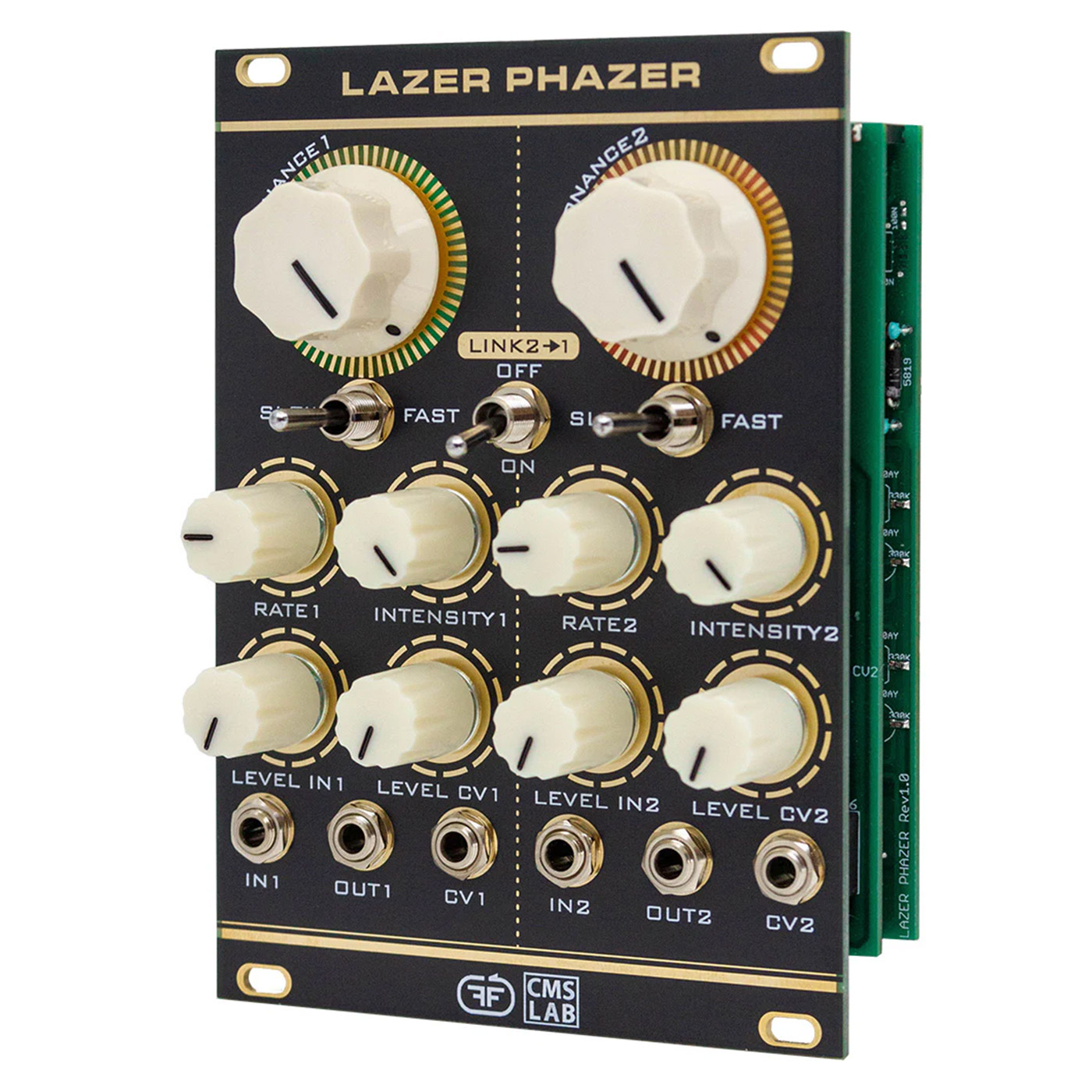

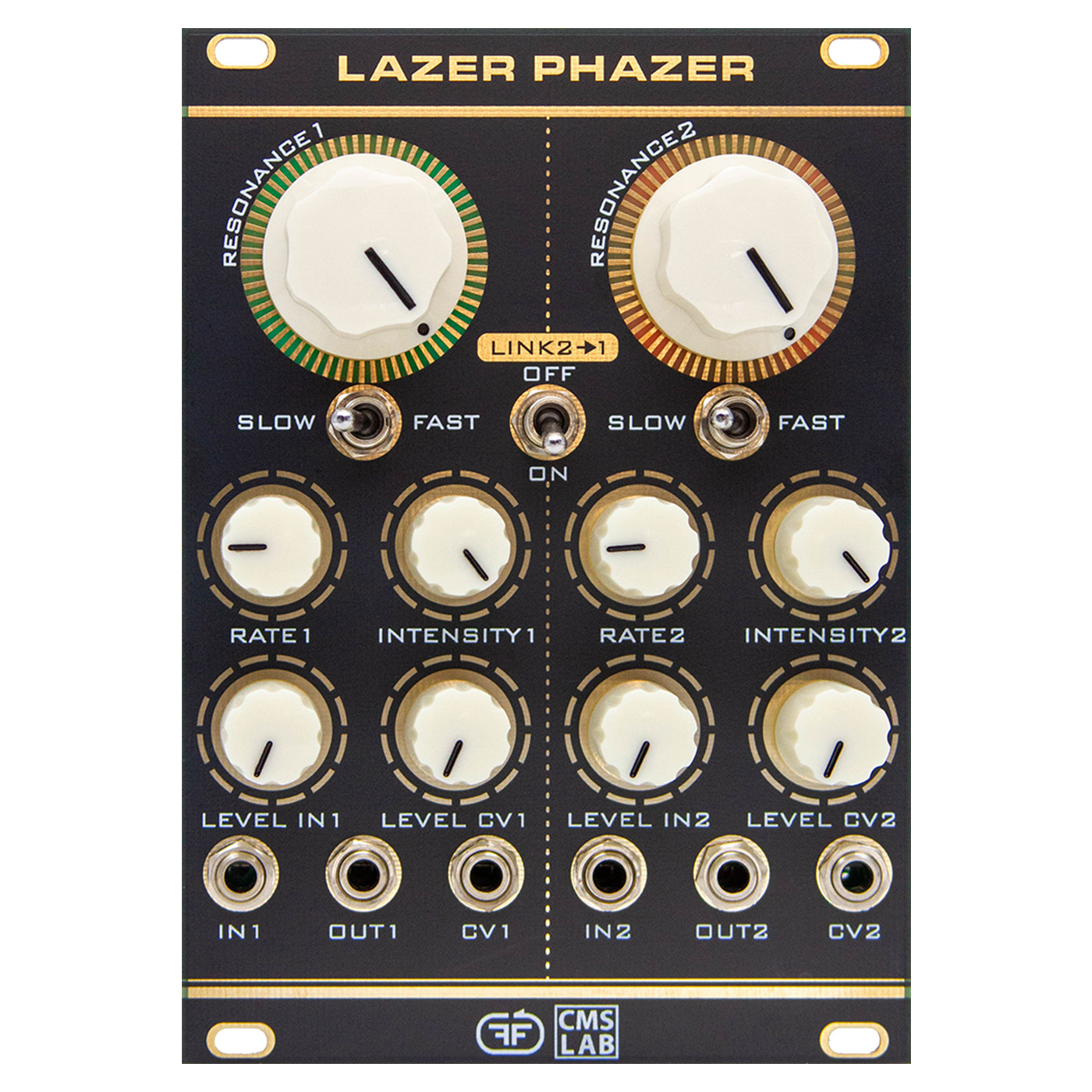

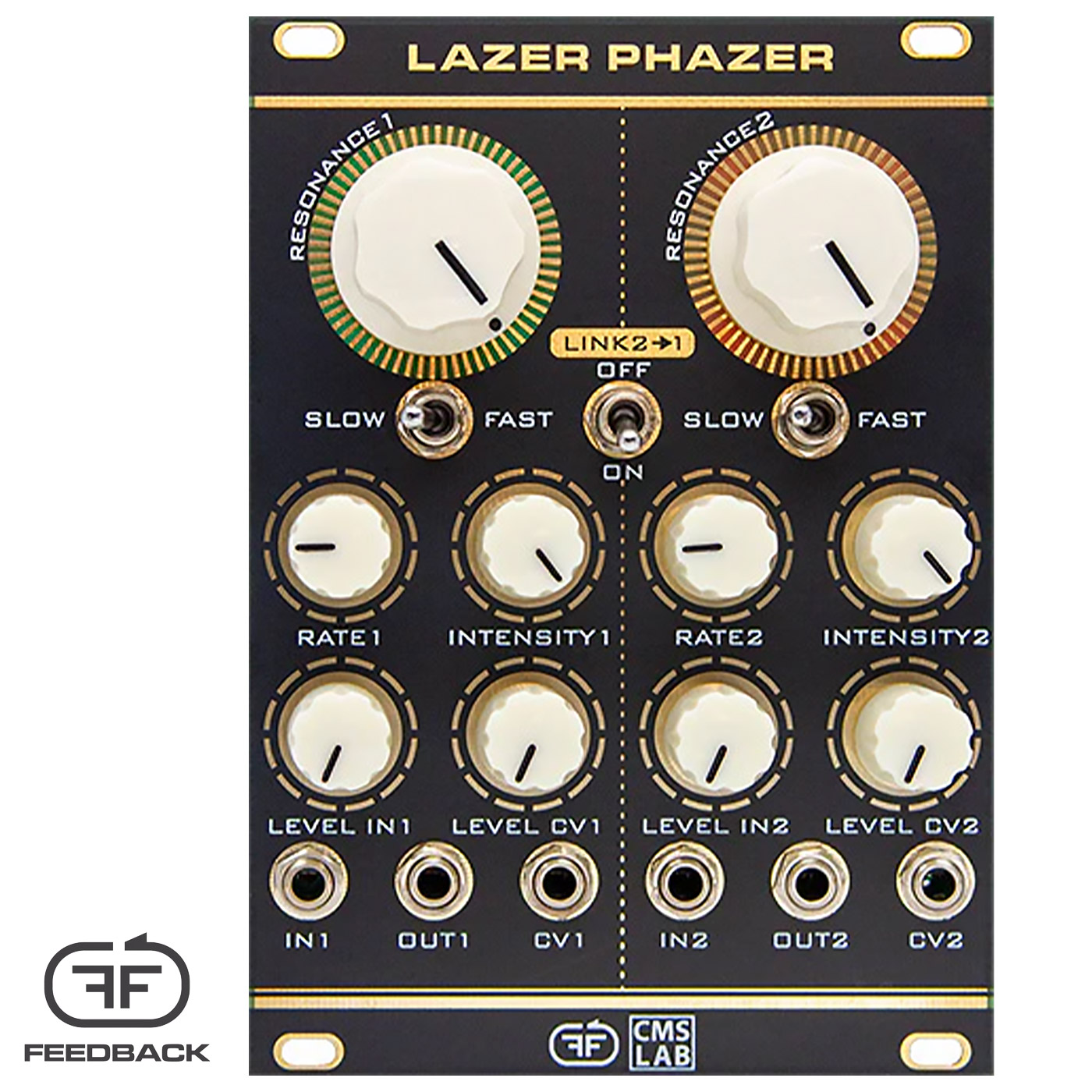

Lazer Phazer is at its core a 2xSystem7xx phaser with a lot of addons. The module can work as a stereo phaser, as a mono BI-Phaser, or as two totally independent phasers, or as a 16stages phaser in series mode.
And thath’s not all, the LFOs of the phasers can work idendepently or linked in inverted mode for stereo phase galore.
The feedback can be modulated by internal LFOs, external CVs or both of them in the same time. The kit includes 16 x 2SK30A fet transistors matched and selected from new old stock, so the retro sound it’s totally there.
This module is a collaboration between Feedback Modules and CMS-LAB.
Tech specs:
- 18HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 80mA , -12V 50mA
