NVRT inverts luma levels from light to dark and dark to light and provides four circuits.

A video inverter is unlike an audio inverter in that it does not invert around 0 volts. Instead, it inverts around a 0.5 volt reference meaning a video signal of 0 to 1 volt becomes 1 to 0 volts.

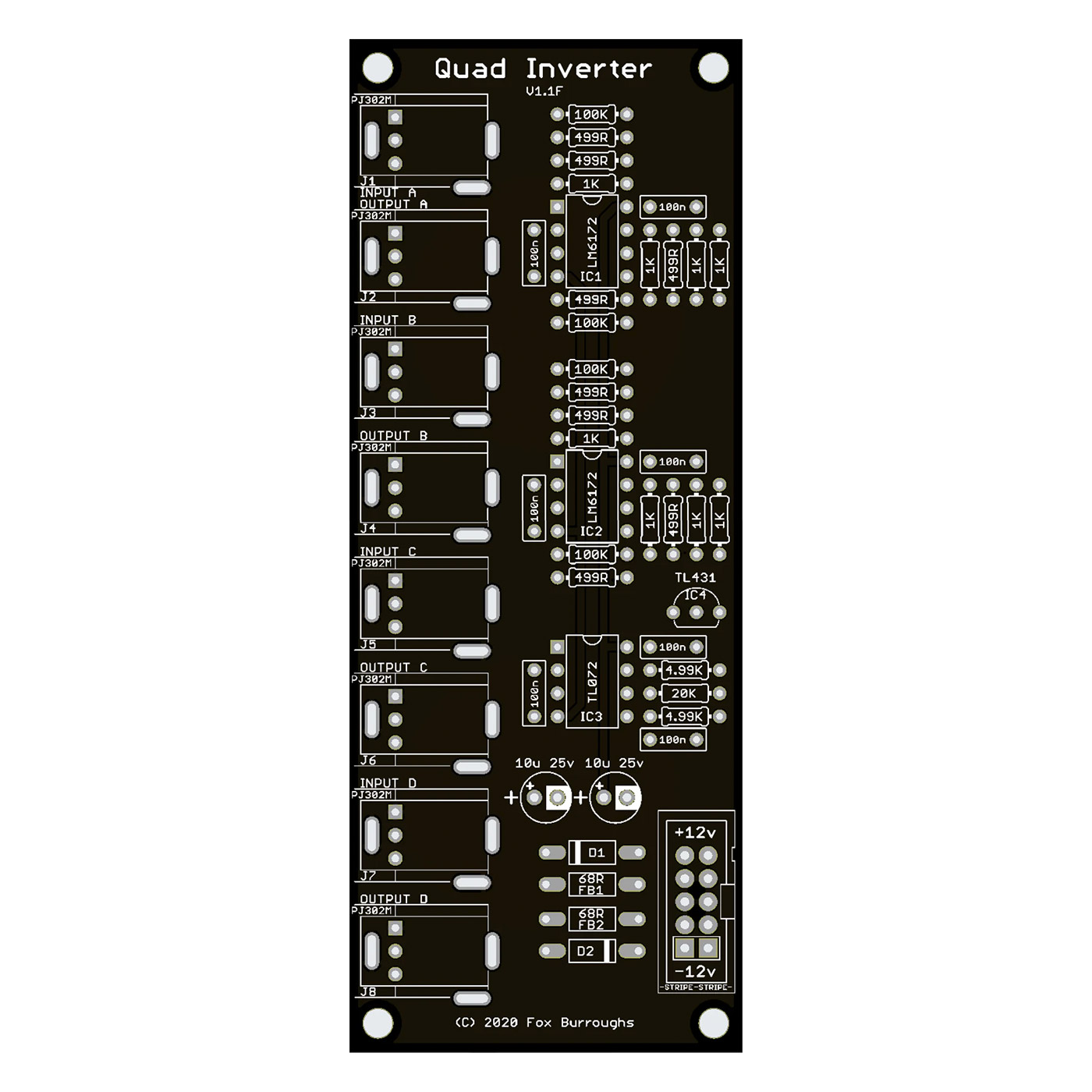

NVRT – Build Guide & BOM

Features

• Quad luma-level inverter module
• Flips light to dark and vice-versa
• Centers around 0.5 for video voltage levels (0-1V)

Specs:

• 4HP
• 44 mm deep
• 17 mA +12V
• 17 mA -12V
