Description

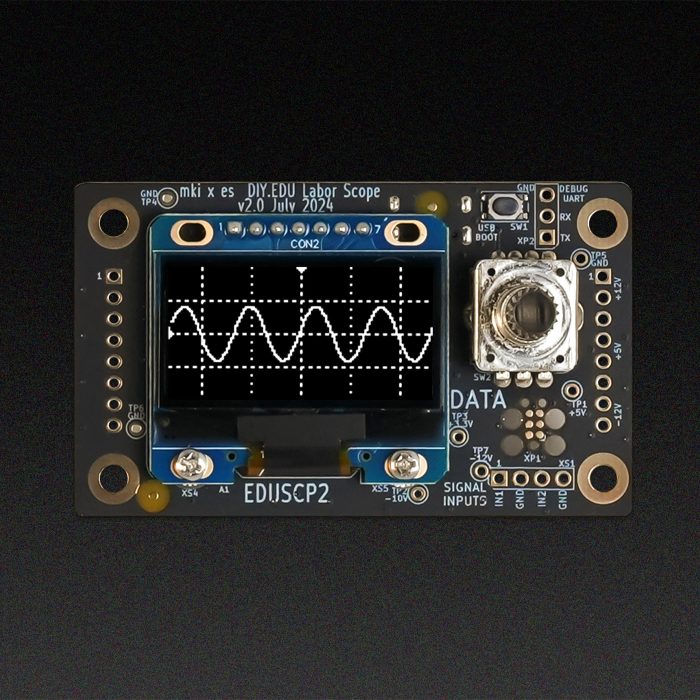

This is a super handy add on display for the DIY.EDU Labor. The display can function as an oscilloscope, voltmeter, spectrometer and tuner, turning the Labor into a self-contained electronics development and experimentation station.

Note: Super easy DIY kit – Scope comes pre-assembled but a small amount of soldering is required of 3 headers to connect the Scope to Labor.

Features

• The 3-channel oscilloscope. Two channel inputs are available on female connector, the third channel is hard wired to the audio output of the Labor.
• Lissajous curves visualizer.
• Voltmeter, 10V range, 0.1V accuracy.
• Spectrometer, with configurable representation.
• Chromatic tuner.

NB! The DIY.EDU Labor Scope is intended for use exclusively with the Labor platform, and other applications and modifications may lead to permanent damage of the instrument.

Labor Scope – User Manual
