Description

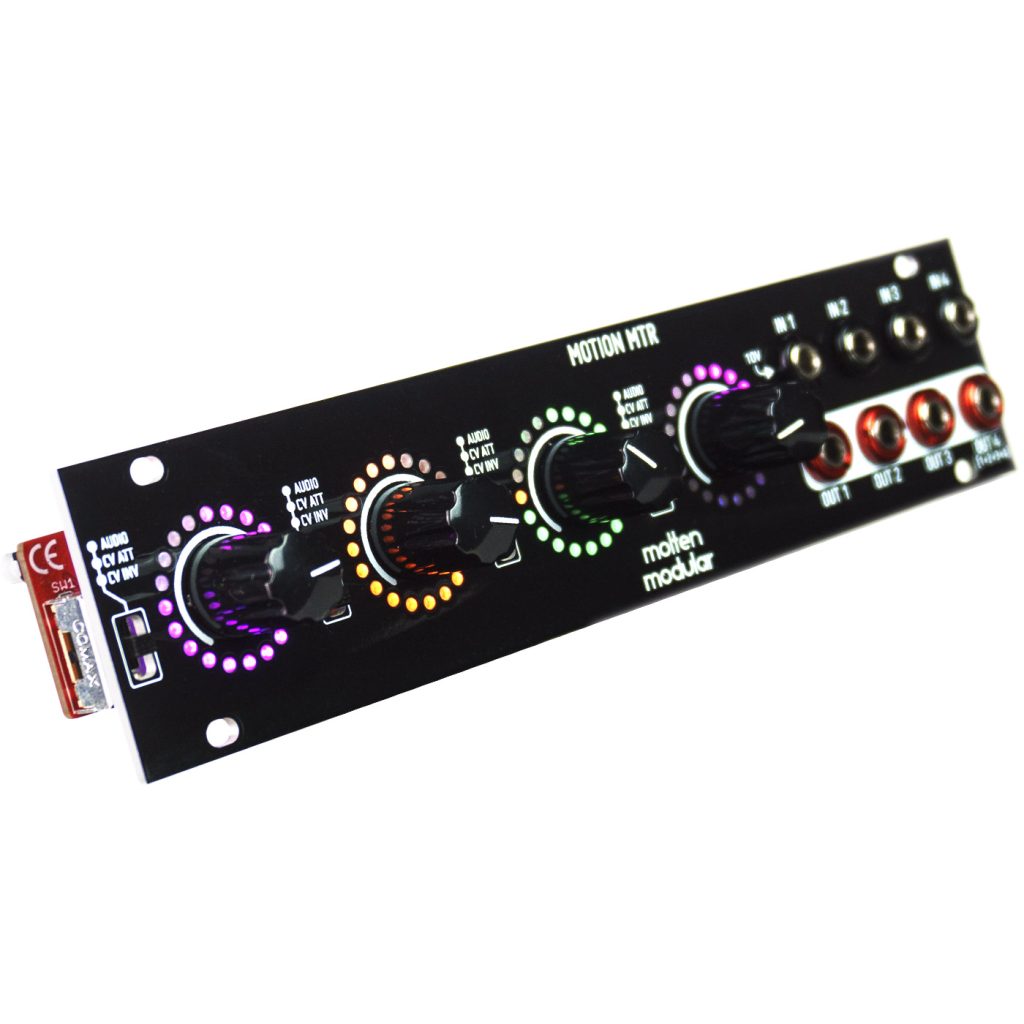

The Molten Motion Meter is a four channel signal visualiser with attenuators, adapted from the 3U Motion Meter. The knob meters allows you to visualise both CV and Audio, acting either as a CV meter or a VU meter. With some clever normalisation,  this module can act also as an attenuverter with offset, mixer and many other utility oriented tasks!

Each channel can function as:

• Audio level control with VU meter
• CV attenuator with voltage meter
• CV inverter with voltage meter

Each input is normalled to 10v, so you can use each of them to generate fixed voltages. Also, the outputs of channels 1, 2 and 3 are summed into Out 4 to be used as a mixer. Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!

1U Motion Meter – Build Document

Features:

• Four channels attenuator.
• CV and inverted CV visualization.
• Audio VU meter mode.
• Normalled inputs to 10v.
• Outputs summed at OUT4.

Specs:

• Width: 34 HP
• Depth: 30mm deep
• Power Consumption: 110 mA +12V, 30 mA -12V
