Description

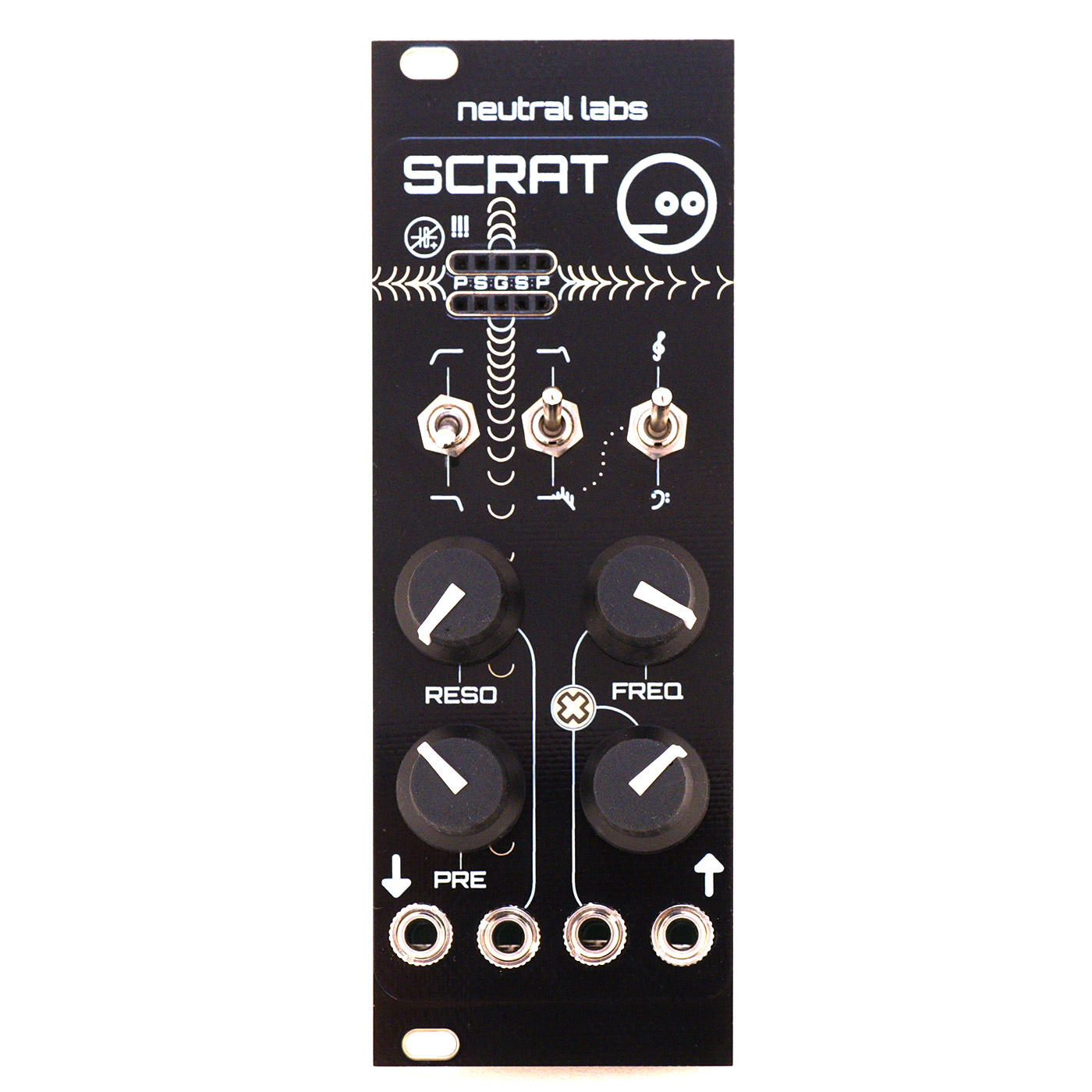

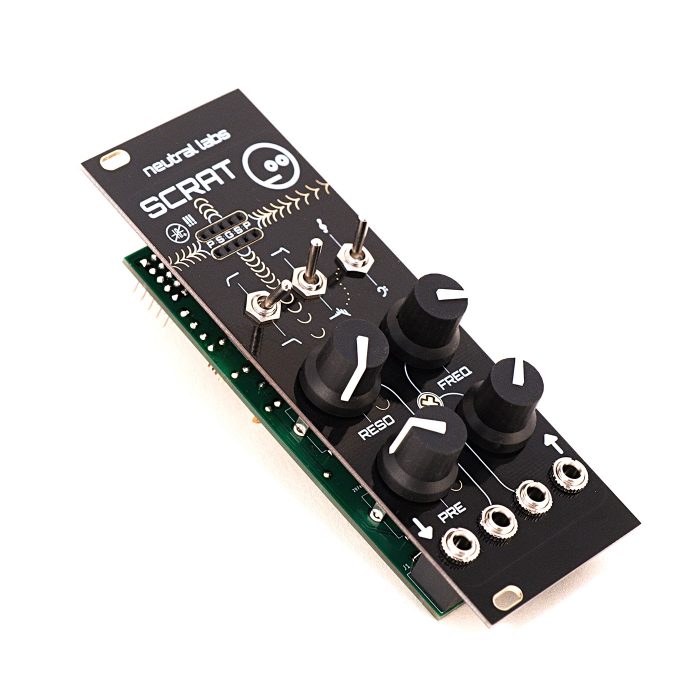

Scrat is an aggressive sounding multimode Steiner-Parker filter with a twist: You can change the resonance flavour by plugging in components like diodes, capacitors or resistors (even LEDs and/or light-dependent resistors) directly to the front panel. A set of preset cartridges is also available, which gives you instant access to a variety of filter sounds. You could even make your own. Or go all in and connect some jumper wires to a breadboard for pretty much endless possibilities!

Note: Be sure to read the User guide in full before experimenting with components in the modifier ports

The 2-pole filter (12 dB/octave) supports both high-pass and low-pass mode. Even without external components or cartridges, the resonance behaviour can be changed in various ways via switches on the front panel. Both resonance and cutoff can be fully CV controlled, and the cutoff CV sensitivity can be adjusted as well.

The module contains an adjustable pre-filter drive circuit, which pairs very well with the Steiner-Parker design.

Scrat is a relatively easy DIY build to complete, with a low component count and no SMD or other tricky parts. All soldering on the 4 preset cards is already done.

Scrat – Build Document | User Guide | Schematic
