A SEQUENCER AND A FILTER-BANK GOT TOGETHER . . .
. . . AND A LOVE CHILD WAS BORN !

Introducing NIGHT RIDER, from RYK Modular

Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer
Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun

NIGHT RIDER cleverly turns the dials to where you want them, when you want, via it’s unique modulation sequencer

Create dreamy swooshing 70’s phaser filter sweeps
Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus Strong twangs, and pinging filter pings !
Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

Technical Specifications:

• Frequency range – from rumble to wispy
• Resonance/Feedback range – from tame to insane
• Individual Filter levels – silent to beyond 11, for serious saturation-clipped sonic destruction

Features:

• Four filter blocks, with multiple models , including:
• 6db BPF [ pingable ]
• 12db BPF [ pingable ]
• 12db variable width BPF
• Comb Filter for Karplus Strom [ pluckable & flanger vibes ]
• All Pass filter [ crazy Phaser vibes ]
• Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can
  be Mono [ CH1 – 1,2,3,4 ] or Dual [ CH1-1,2 CH2 – 3,4 ]
• Modulation Sequencer capable of being clocked, scanned, and interpolated
• CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount,
• Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC
• Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups

Please note: this kit is recommended for experienced builders only

To build the kit you MUST have the following:
-Two mini clamps
-Clean high quality 2/3mm tip solder iron [ chisel type recommended ]
-Mini Phillips screwdriver for M3 & M2 pan head screws

The PCB is double sided, and any mistakes soldering some parts might be very difficult to fix later on!

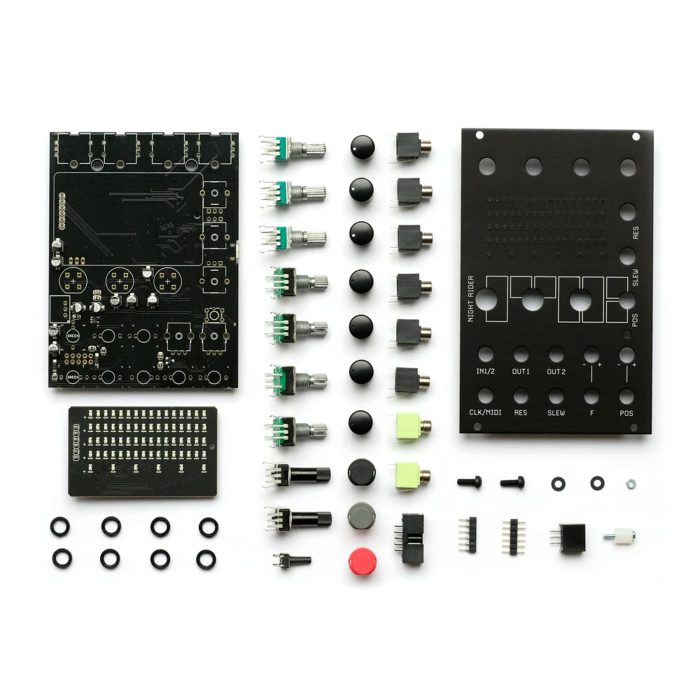

This is a complete kit for Eurorack, Including all parts:

• 1x PCB (All SMD parts come already pre-soldered)
• A high quality screenprinted 2mm aluminium panel
• Encoders, knobs, switches, LED displays PCB, jack sockets, and all sundry components.
• Includes USB data cable for firmware install, sexy black Eurorack power cable, RYK stereo splitter cable

Specs:

• Width 16 HP
• Depth 25mm
• Power Consumption: 52mA +12V, 9mA -12V

Night Rider – User Manual | Build Document
