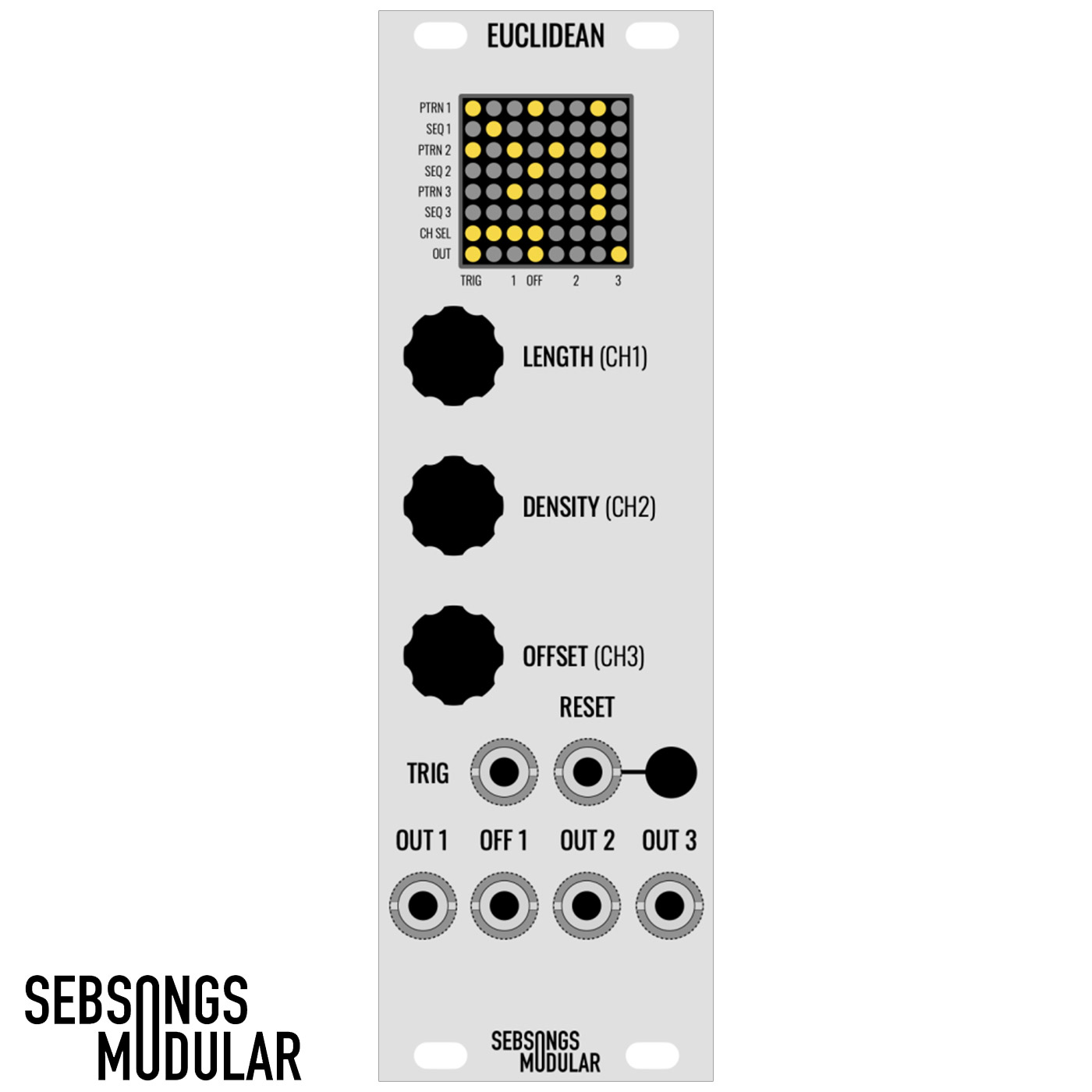

EUCLIDEAN is a gate sequencer for the Eurorack format based on the classic euclidean algorithm. The module design is based on the DIY module originally developed by Music Thing Modular’s Tom Whitwell, and Tom has blessed this module with his approval.
The module consists of three channels of sixteen step sequences, and each channel can be set to any length, density and offset between one and sixteen. An 8×8 matrix LED display provides clear visual feedback for each pattern, and setting each channel is easily done with the three encoders.
EUCLIDEAN is perfect for creating polymetric rhythms, odd time signature sequencing or clock division with a twist! The module runs an internal clock set to 120 BPM by default, but can also be triggered and reset externally. Each sequencer channel has a dedicated trigger output. In addition, the first channel has an inverted output that outputs triggers on every off signal of Output 1.
RESOURCES
Specs:
- Width: 8 HP
- Depth: 30 mm
- Current draw: +62 mA
- Trigger output voltage: 5V
