Description

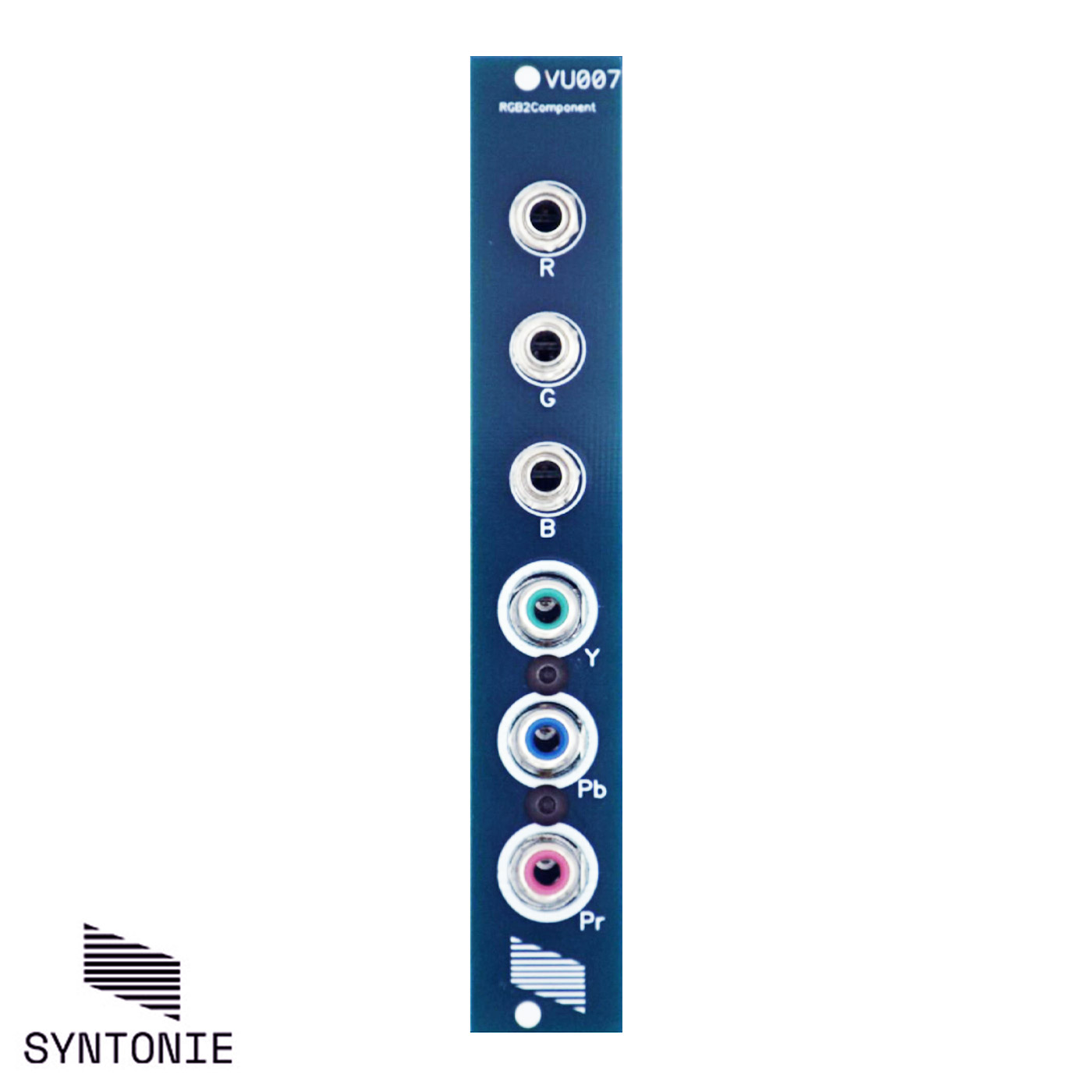

The VU007 is an 1V RGB to SD Component Encoder which uses a 14pin sync cable for composite sync and blanking. This module is useful if you already own a Cadet Sync Generator.

PCB set and DIY kit comes includes pre-soldered ADA4851-4 SMD chip.

Input :
0-1V RGB, 499 ohms, jack

Output :
0-700mV YpbPr, 75 ohms, RCA

Specs:

• 4 HP
• 53mA +12V
• 44 mA -12V
• 0 mA +5V
• 65mm deep
