Description

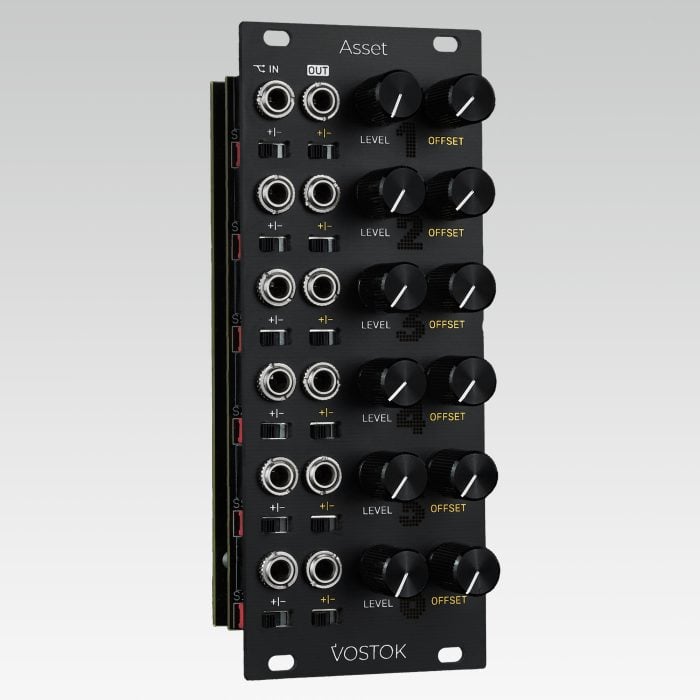

Asset is a six-channel signal processor and offset generator.

Each channel can attenuate or invert incoming signals and sum either positive or negative offset to them.

Asset’s inputs are daisy-chained, allowing the creation of up to six different versions of the same signal. This is useful when using modulation signals such as Envelopes or LFOs that you want to send to multiple destinations.

With nothing patched at the inputs, each channel becomes a precise offset generator with a selectable positive and negative range between 0 to 10V and 0 to -10V.

Features:

• Six channels
• DC Offset generator per channel
• Selectable Invert mode for both attenuation and offset circuit
• Daisy-chained inputs

Specs:

• Width: 10HP
• Power Consumption: +/-12V: 50mA, +5V: 0mA
• Depth: 30mm (including power cable)
• Offset generator range: +/- 10V
• Input Impedance: 100kΩ
• Output Impedance: 1kΩ

Asset – Build Document | User Manual
