Description

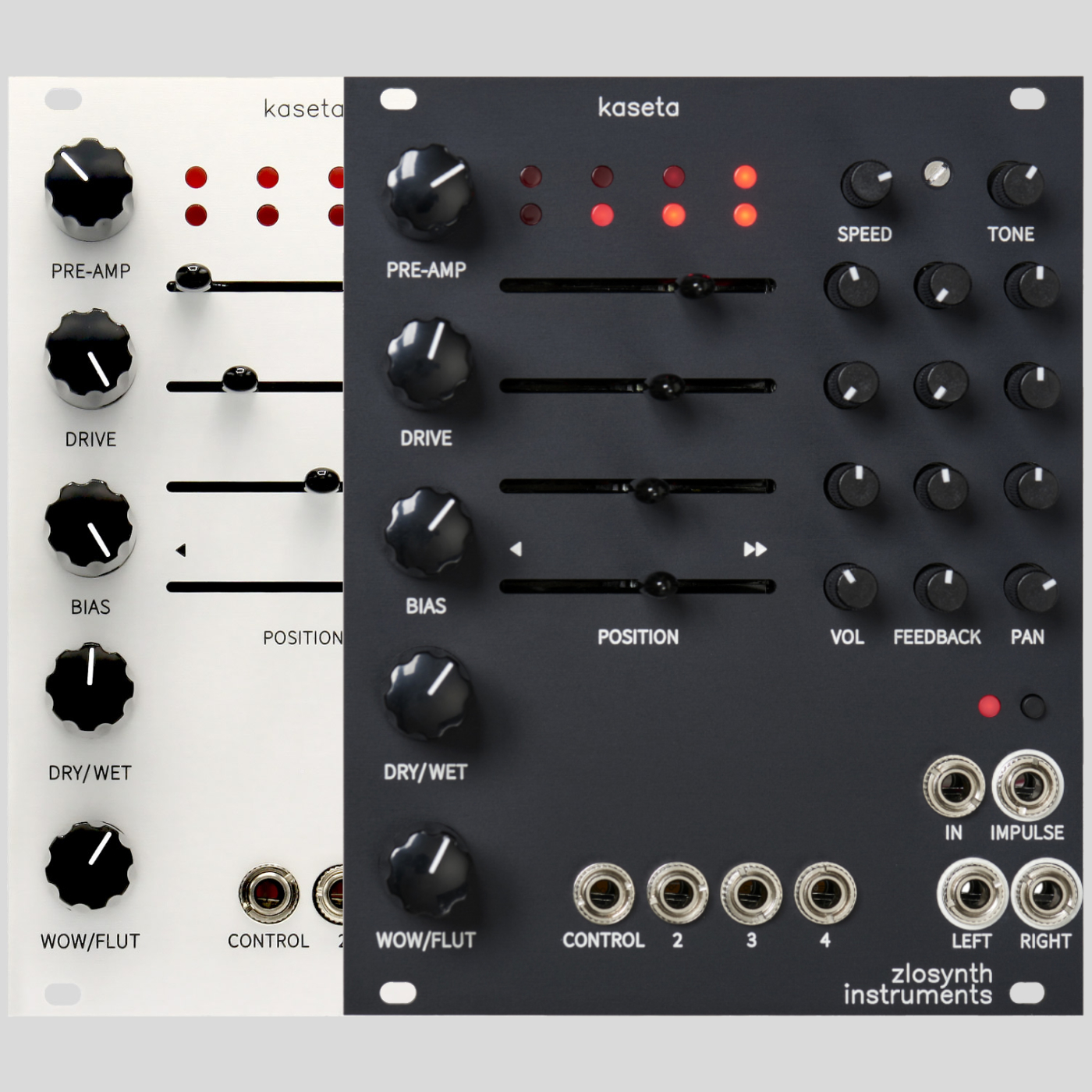

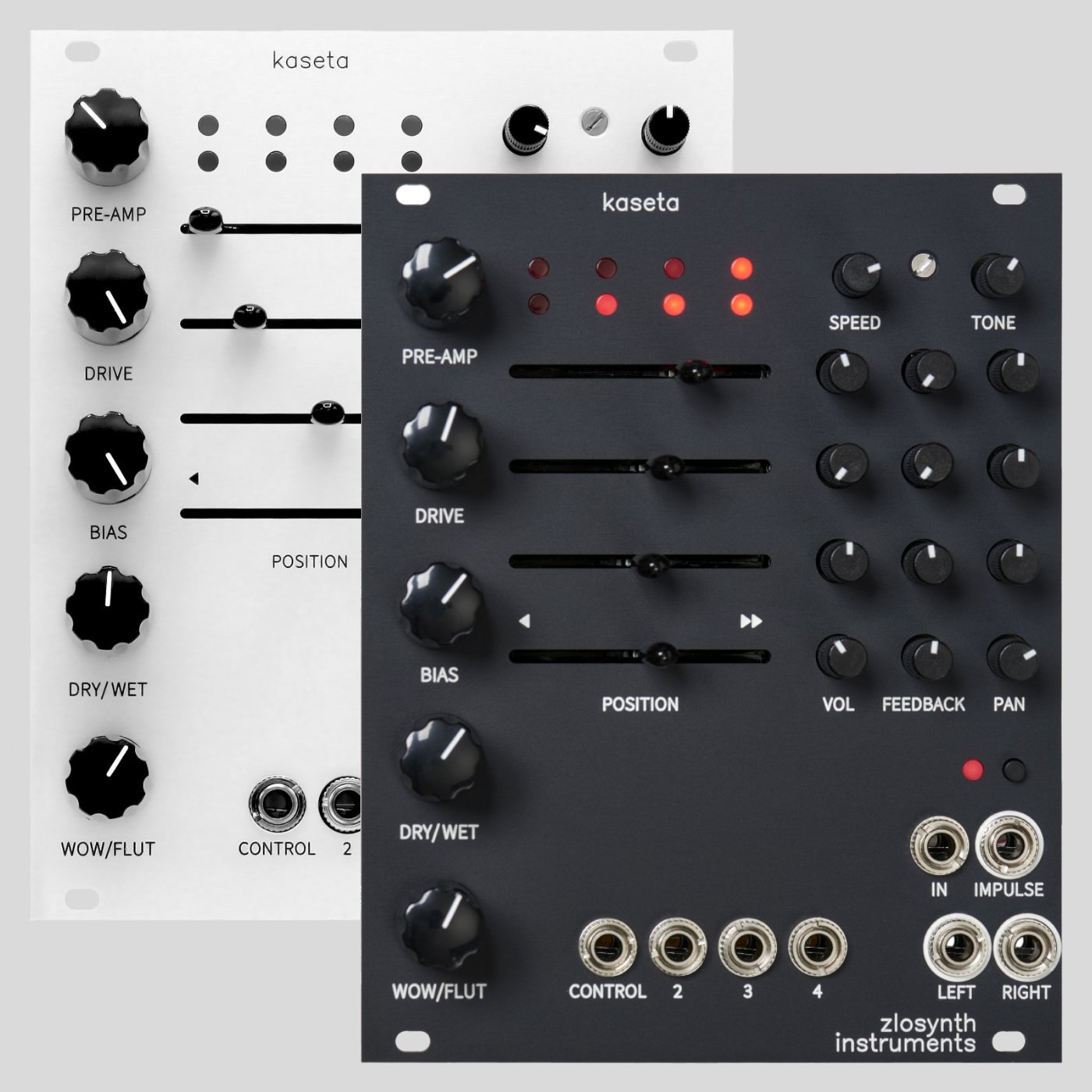

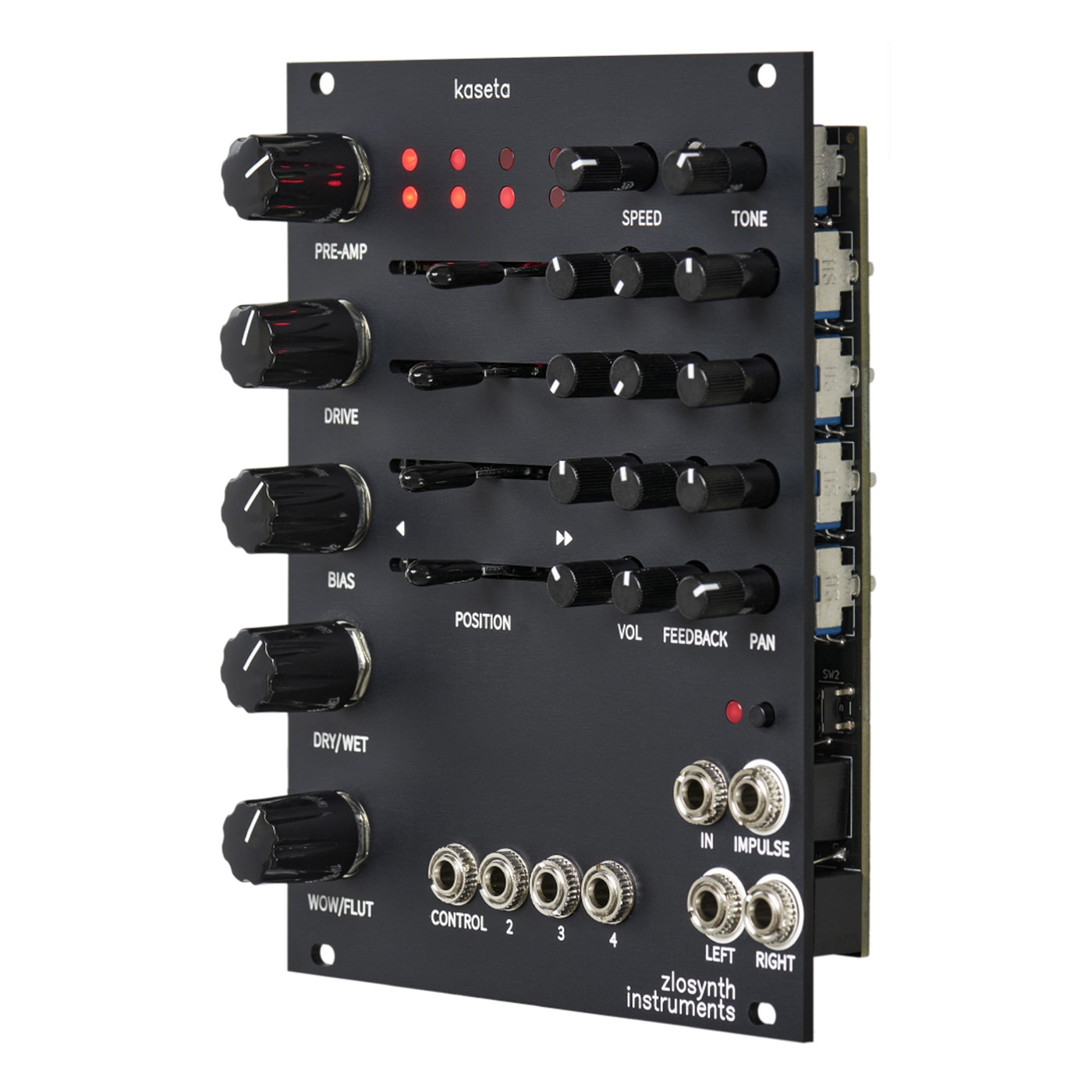

Kaseta is a multi-purpose module inspired by classic reel-to-reel tape machines. The module has four independent delay lines that can be used to sculpt evolving rhythms and feedback loops. Kaseta goes beyond typical tape machine features, with free-moving delays, trigger sequencing, magnetic hysteresis simulation and an internal oscillator. This grants variations of ping-pong delays, the Haas effect, and even some simple reverb, all together with a warm tape saturation.

Features:

• 4 Delay Lines with individual volume, feedback, and pan parameters
• Great sounding Pre-Amp
• Warm tape saturation (Jiles-Atherton model)
• Wow and Flutter
• Up to 5 minutes of audio recording in 24-bit, 48 kHz
• Low-High Pass-Filter combination (Tone)
• Speed adjusts overall Delay Time
• Stereo output
• Internal oscillator
• Hackable Daisy Patch Submodule

Kaseta – Build Document | User Manual

Specs:

• Width: 20HP
• Depth: 28mm
• Power Consumption: 117 mA +12V, 8 mA -12V
